New Electrode Assembly with Custom Origin
Benefit SMARTElectrode allows definition of a custom placement csys for new electrode assemblies. This enhancement allows to correct orientation of reference models in assembly.
Usage
- Open Assembly user interface.
- Expand More Settings….

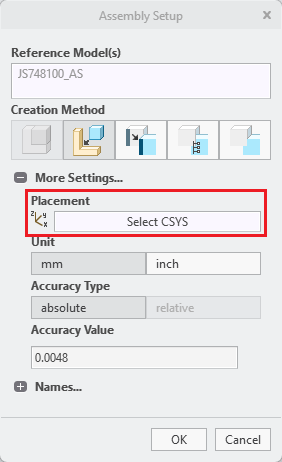

- Click Placement to start selection of csys:
- Proceed with defining the assembly as usual.
- Confirm the dialog with OK to create the assembly with the selected orientation.
Notes
Defined custom assembly origin is used for computation of csys and datum points in group “SE_AUTO_CSYS” on reference model outline.
Availability
- Creo Parametric 13.0 – SMARTElectrode 19.4.0.0
- Creo Parametric 12.4 – SMARTElectrode 18.4.3.0
- Creo Parametric 11.0 – SMARTElectrode 17.0.7.0
- Creo Parametric 10.0 – SMARTElectrode 16.0.6.0
- Creo Parametric 9.0 – SMARTElectrode 15.1.12.0
