New Releases for Expert Moldbase Extension 18.4.3.3, 17.0.8.0, 16.0.10.5, 15.0.5.3 available!

Expert Moldbase Extension 18.4.3.3, 17.0.8.0, 16.0.10.5, 15.0.5.3

The new EMX versions include several improvements and enhancements:

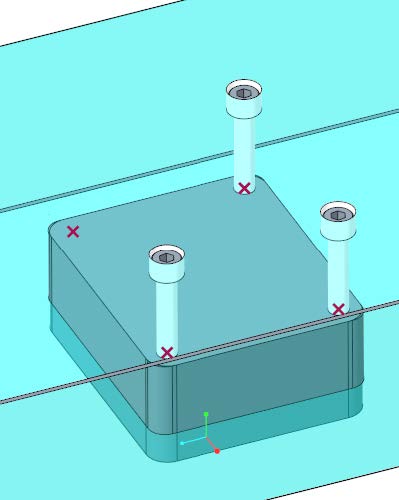

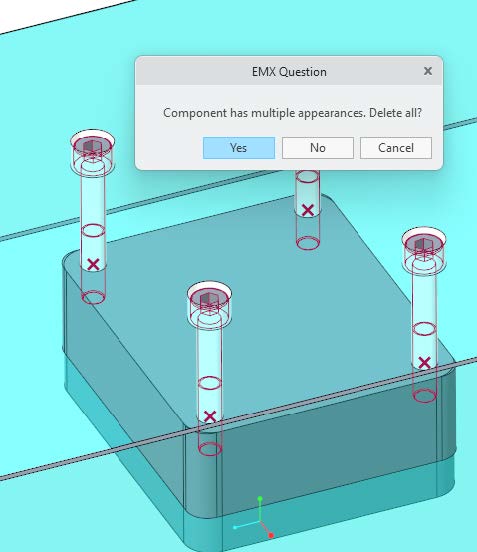

• Remove Components: For components placed on a sketch with multiple points or via “Assemble again,” individual instances can now be deleted.

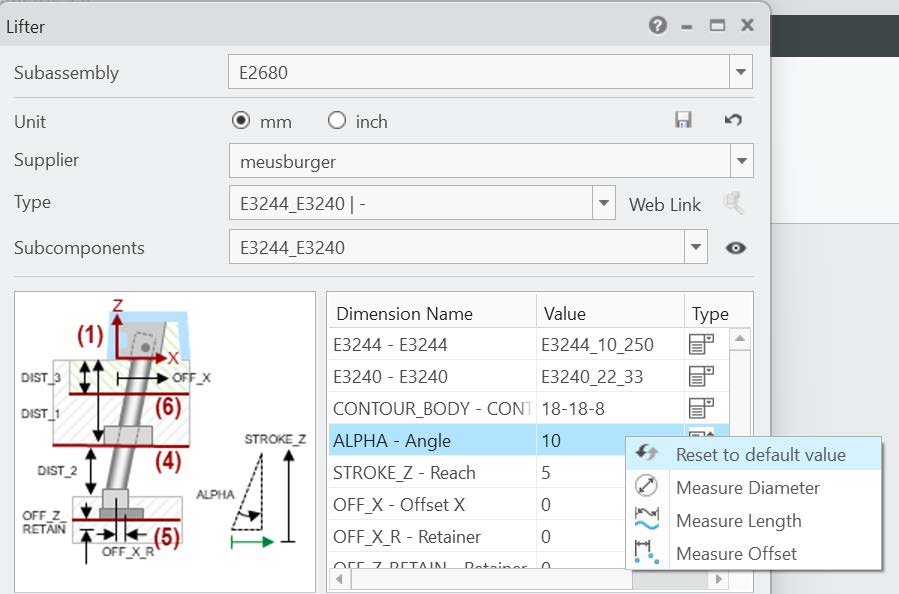

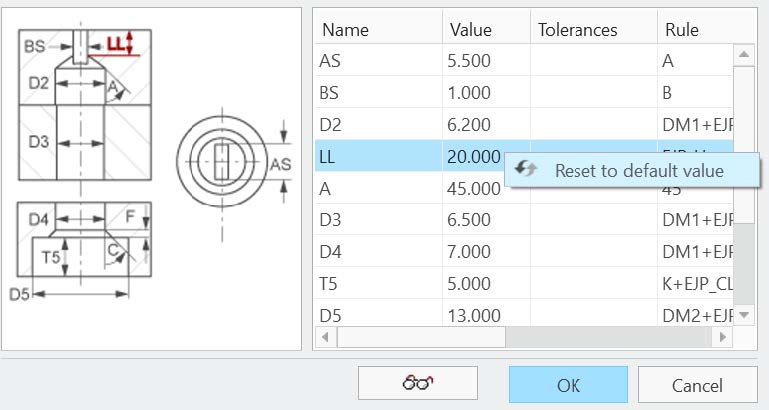

• Component dialog: Values in the tables can be reset to default using the right mouse button.

• Vordefinierte Komponenten: Mit der bekannten “Komponente entfernen”-Funktion können vordefinierte Schrauben- und stiftinformationen von Punkten entfernt werden.
• Improvements for the component editor
  • Predefined components: The familiar “Remove Component” function can be used to remove predefined screw and pin information from points.

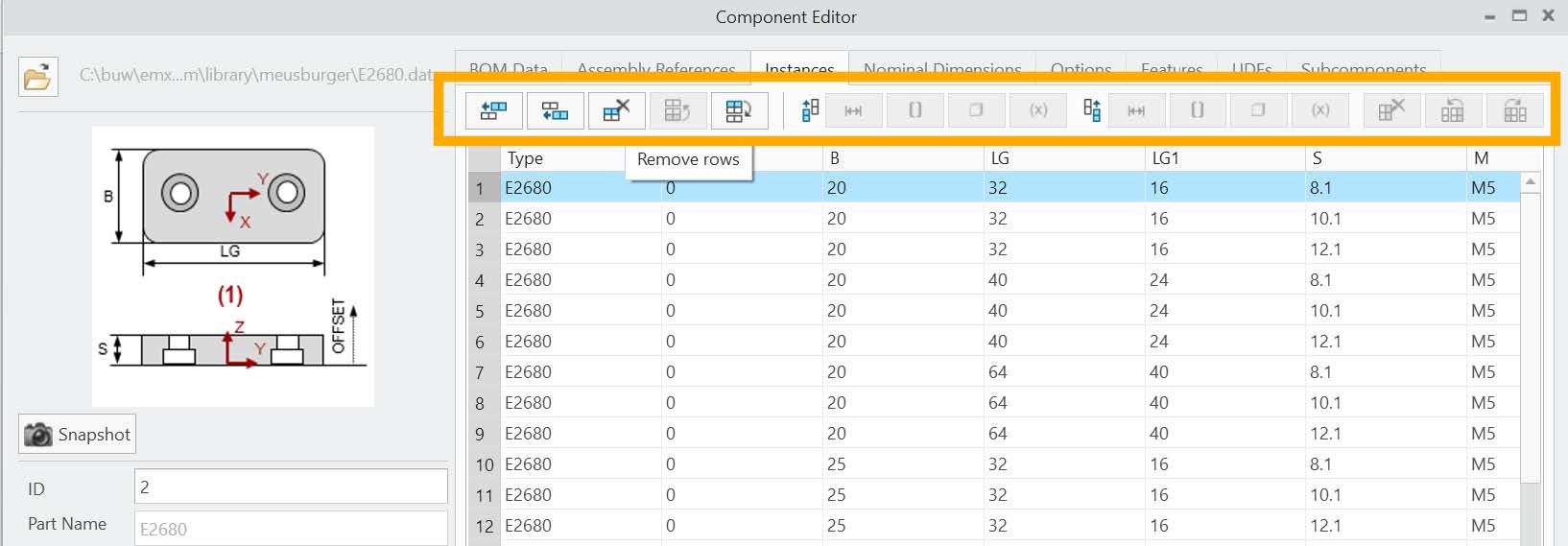

• • In the instance table, instance dimensions can now also be added when a cell is selected. Previously, it was necessary to select the column header.
  • In the part name rules, the side(ES/IS) can be selected via a pull-down menu.
  • The default value can now be edited in the assemmbly references.
• The existing Meusburger components and plates have been updated to the status as of fall 2025. With this update, some items have been removed from the product range. At the same time, EMX now supports links to the new online shop.

Here you can find more detailed information about the new version and its latest updates.
